WL Series Vertical Sewage Pump

The WL Series vertical sewage pump adopts a single (double) channel or single/double blade structure, featuring a non-clogging hydraulic design with excellent passage performance, smooth operation, low vibration, high reliability, easy installation, convenient operation, and automatic control capabilities.

Equipped with imported bearings, mechanical seals, and a stainless steel shaft for superior performance.

Performance Parameters:

Flow Rate: 20 - 10,000 m³/h

Head: 6 - 54 meters

Motor Power: 4 - 1,800 kW

Discharge Diameter: 65 - 8,000 mm

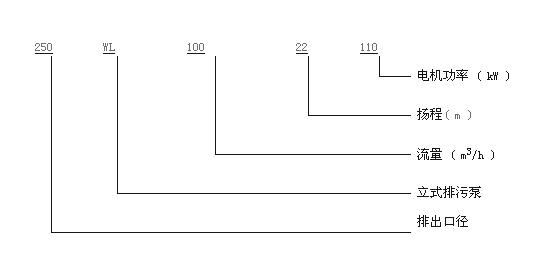

Model Description

Widely used for sewage, slurry, feces, ash residue, pulp, and similar substances in urban water supply and drainage systems, industrial and mining enterprises, commercial facilities, and waste discharge. Also suitable as circulating pumps or agricultural irrigation pumps.

• pH: 5 - 9
• Water Temperature: ≤45°C
• Impurity Content (by weight): ≤25%
